Q Span Clamp H-4042
Q Span Clamp H-4042



Our Price: $0.68


Product Code: H-4042
Qty:

Description

  • Used in drop cable installations as an attachment to strand for either accepting the bail of drop wire clamps, or for wrapping the support wire of drop cable.

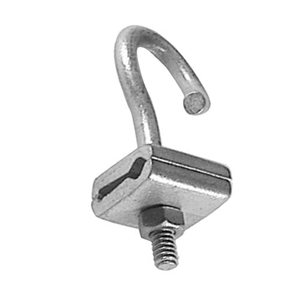

  • Clamp consists of a set of steel jaws, a 1/4" diameter “pig-tail” shaped bolt, and a hex nut.
  • The jaws are rolled and stamped from AISI 1018 tempered steel.
  • The bolt and hex nut are formed from Grade 2 Steel.
  • Nut and bolt are hot dip galvanized to meet ASTM Specification A153, Class B3.
  • Jaws are mechanically galvanized to meet ASTM Specification B695, Class 50, Type 1.
  • Attaches to strand ranging in size from 1/4" (6.6m) to 7/16"(16m).
Q Span Clamp H-4042
