1-1/2” SQUARE HUB ANCHOR 8" 7,000 FT-LB INSTALLATION TORQUE H-D184-7
1-1/2" SINGLE SOLID SQUARE HUB ANCHOR 8" HELIX POWER HUB ANCHOR – 7000 FT-LB INSTALATION TORQUE H-D184-7



Alternative Views:
Our Price: $59.74


Product Code: H-D184-7
Qty:

Description

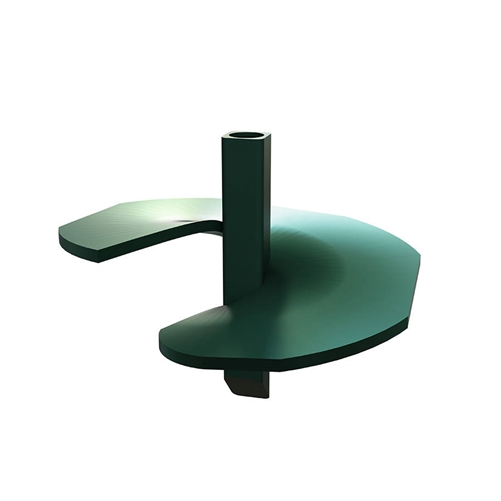

1-1/2" SINGLE SOLID SQUARE HUB ANCHOR 8" HELIX POWER HUB ANCHOR – 7000 FT-LB
  • Installation is performed using a power digger. An anchor wrench fits over the square hub and a torque measurement device is required to determine proper installation.
  • Correct installation is achieved only when the anchor is installed using the appropriate torque for the particular soil and anchor type (see reference charts).
  • Proper anchor selection depends on the type of soil and guying requirements.
  • Installation torque is usually measured using a device connected in series with the wrench, digger, and Kelly Bar during installation.
*To be used with 7ft 1" D100, 3.5ft 1" D10031, or D75 3/4" 12632 Pisa rods only.
