Home > Pole Line Hardware > Drop Wire Clamps/Hooks >

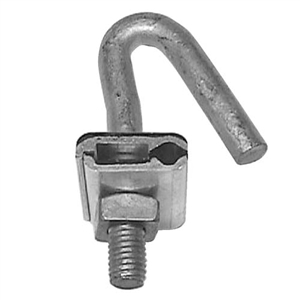

C Span Clamp H-4044
C Span Clamp H-4044



Our Price: $1.86


Product Code: H-4044
Qty:

Description

  • Used in drop cable installations as an attachment to the strand for either accepting the bail of drop wire clamps, or for wrapping the support wire of drop cable.
  • Consists of high strength Aluminum jaws, and a specially shaped bolt with square nut.
  • Jaws are extruded from 6063-T6 aluminum.
  • Bolt and nut are formed from Grade 2 steel.
  • Bolt and nut are hot dip galvanized to meet ASTM Specification A153, Class B3.
  • Bolt is 3/8" diameter for additional strength.
  • Attaches to strand sizes ranging from 1/4" (6.6M) to 3/8" (10M).
C Span Clamp H-4044
