This version: *P/N 86071 - Each of two recessed magazines will hold a 450 ft. of .065 in lashing wire for for Modified J2 Lasher.

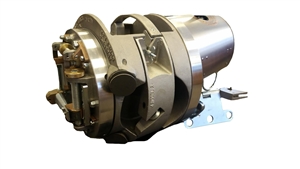

GMP J2 MODIFIED Cable Lasher (Special Order)
P/N 86070 The Model J2 Cable Lasher will lash any single or multiple aerial cables up to 3 in. (76 mm) diameter across on any suspension strand from 1/4 in. (6 mm) to .535 in. (14 mm). Consists of a rotating drum supported on a carriage that provides the mounting for a driving mechanism, cable lifters, cable and strand rollers.
Each of two recessed magazines will hold a 1200 ft. coil of .045 in. (365 m of 1.1 mm wire) lashing wire. The Lashing Wire is fully recessed and covered by a gate.
Features a fast setup procedure, quick coil loading, and automatic drum lock for easy span transfers and smooth forward travel J2 Cable Lashers make overlashing easy. Just push down on the strand roller knob, rotate it a quarter turn and you can lash additional cables together on previously lashed cable.
Constructed with heat-treated, plated steel, stainless steel, brass and aluminum components. Contains sealed and oiless bearings to minimize maintenance and assure durability. Positive internal gear to gear mechanism has no chains or belts to stretch, slip or break Pre-drilled and tapped at the factory for mounting of the lasher guard or "halo".
The lasher is furnished with a rugged lightweight storage chest with corrosion resistant hardware, recessed latches and a moisture-proof, tongue-in-groove design for maximum protection when not in use. Supplied with a 6 ft. bridle rope assembly and snap hooks, and an information and operation manual.
Modified Versions are Available
*P/N 86071 - Each of two recessed magazines will hold a 450 ft. of .065 in lashing wire for for Modified J2 Lasher. *Special Order Only*
*P/N 86072 - A factory modification will allow the lasher to accommodate 1/2 in. (12.7 mm) strand if necessary. *Special Order Only*
*P/N 86074 - The new J2 Model derivative J2B Cable Lasher is capable of large bundle overlashing. The strand lock has been removed and the opening has been enlarged to prevent cable from rubbing on the housing. Included is a removable front handle to aid in moving the lasher around a pole.
|
|
|
 |
|
 |
|
