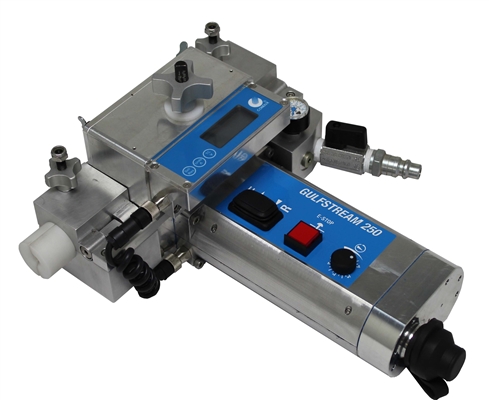

Gulfstream 250™ Micro Fiber Blower Standard Kit, Condux 08783805-50
Condux 08783805-50 Gulfstream 250™ Micro Fiber Blower Standard Kit,



Our Price: $14,705.64


Product Code: CON-08783805-50
Qty:

Description

The Gulfstream 250 is an effective and economical approach to middle mile fiber installations. Able to install fiber optic cable ranging in size from 2.5mm - 8mm into duct from 5mm - 18mm, the Gulfstream 250 offers portability, convenience and power in a cost effective package. The unit features userfriendly controls that help optimize the fiber optic cable installation process.

Blower Size

Dimensions: 11” (l) x 8” (w) x 6”(h)

279mm (l) x 203mm (w) x 152mm(h)

Weight: 5lbs/2.27kg

Microduct Range

5 – 18mm

Built in clamping system with interchangeable seals

Fiber Cable Range

2.5 – 8mm

8.1 - 9.75mm (with specialty wheels, not included in kit)

Power System

Electric drive motor

48v AC Power Supply (Plugged into wall or 1000w Generator)G
*Air pressure and flow requirements depends on the size of duct and the size of fiber being installed into that duct.
GS250, GS 250
Features

  • Drive

    • Wheel drive
    • Maximum push force of 30lbs (134N)
    • Speed: 0-150fpm (0 – 45mpm)

    Controls

    • Forward/reverse switch
    • Speed control to regulate motor speed
    • Screen that monitors speed, distance and life counter
    • Emergency stop button for instant shut down
    • Push force adjustment (crash test kick out)

    Force and Flow

    • Air connections: 3/8" EU or US Coupling
    • Air Pressure Requirements (BAR)*: 10-15 Bar
    • Air Pressure Requirements (PSI)*: 150-205 PSI
    • Flow Requirements (CMM)*: 0.5-1.5 CMM
    • Flow Requirements (CFM)*: 10-35 CFM
