PLP FIBERLIGN® Aluminum Support (FAS) for ADSS 4450095A 0.226-0.275 to 4450113A 1.351-1.425

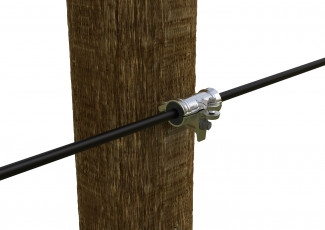

PLP FIBERLIGN® Aluminum Support (FAS) for ADSS



Alternative Views:
Our Price: $45.83
SALE Price: $42.77
You save $3.06!


Product Code: H-PLP-ALUMINUM-SUPPORT-ADSS


ALUMINUM SUPPORT RANGE:

Qty:
Description


The FIBERLIGN Aluminum Support (FAS) is designed to gently, but firmly support All-Dielectric Self-Supporting (ADSS) cable. The band slot is designed to accept a 1 1/4" wide x 0.040" thick (32mm x 1 mm) high strength band.
Quantity 2 Inserts Required per Support
Housing Only 4450000

INSER COMPONENT
Inset Part #Size For
000702410.226-0.275
000702360.276-0.325
000702370.326-0.375
000702380.376-0.425
000702390.426-0.475
000701310.826-0.9
000701320.901-0.975
000701330.976-1.05
000701341.051-1.25
000701351.126-1.2
000701361.201-1.275
000701371.276-1.35
000701381..51-1.425


H-PLP4450095A 0.226" - 0.275", H-PLP4450096A 0.276" - 0.325", H-PLP4450097A .326" - .375", H-PLP4450098A .376" - .425", H-PLP4450099A .426" - .475", H-PLP4450106A .826" - .9", H-PLP4450107A .901" - 975", H-PLP4450108A 0.976" - 1.05"

4450095A, 4450096A, 4450097A, 4450098A, 4450099A, 4450106A, 4450107A, 4450108A,
Features

    • Integrated bolt or band mount design
    • Keeper and base have an interlocking hinge allowing easy access for pulling-in rope and ADSS cable
    • Single-bolt clamping
    • Stackability for multi-cable installations
    • Multi-cable installations with the FAS save pole space as the first unit mounts against the pole and added units extend horizonatlly
    • Designed for short span applications where vertical loading does not exceed 1000# (4.4 kN)
    • Can be bolted or banded to structure
