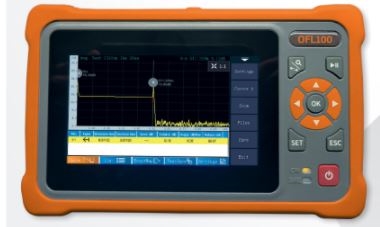

The OFL100 OTDR enables the front-line fiber technician to quickly locate loss events in the last mile of the FTTx network. The convenient touchscreen provides an intuitive interface for even newly provisioned technicians making it simple to locate loss events such as cut fibers, contaminated or damaged connectors, and excessively bent fibers.
| OTDR |
|
| Stabilized Laser Source | | | Wavelength | 1310/1550mm | | Wavelength | 1310/1550nm | | Dynamic Range | 26/24dB | | Output Power | ≥-5dBm | | Event Deadzone | 2.5m | | Power Stability | CW, ±0.5dB/15 minutes after continuous on of 15 minutes | | Attenuation Deadzone | 8m | | Bulkhead | SC/APC (Optional LC and FC Available) | | Measurement Ranges | 500m, 1km, 2km, 4km, 8km, 16km, 32km, 64km and 100km | | Tone Frequencies | 500m, 1km, 2km, 4km, 8km, 16km, 32km, 64km and 100km | | Pulse Widths | 3ns, 5ns, 10ns, 20ns, 30ns, 50ns, 80ns, 160ns, 320ns,
500ns, 800ns, 1µs, 2µs, 3µs, 5µs, 8µs, 10µs and 20µs | | Optical Loss Testing | | | Measurement Accuracy | ±(1m + Sample Interval + 0.005% x
Test Distance
| | Wavelength | 1310nm and 1550nm | | Linearity | ≤0.05dB/dB | | Insertion Loss Testing | Integrated OPM and SLS | | Sampling Points | 16,000 to 128,000 | | RJ45 Cable Tracker | | | Loss Resolution | 0.001dB | | Mode | Digital | | Loss Threshold | 0.20dB | | Distance | ≥300m | | Distance Resolution | 0.001m | | Pair Tracing | Compatible | | Refractive Index | 1.00000 to 2.00000 | | RJ45 Cable Measurement | | | Reflection Accuracy | ±3dB | | Distance | ≥300m | | File Format | SOR compliant to Telcordia GR196 | | Mechanical | | | Loss Analysis | Four Point & Five Point | | Display | 4.3” 800x400 TFT LCD Touchscreen | | Laser Safety | Class 1M | | Power Supply | AC to DC 100-240VAC, 50/60Hz | | Bulkhead | SC/APC (Optional LC and FC Available) | | Power Supply Format | North America, United Kingdom and Europe | | Trace Update Rate | 3Hz | | Battery Lifetime | >12 Hours Continuous Test | | Optical Power Meter | | | Battery | 3.7V, 4Ah Li ION | | Wavelength Range | 800nm to 1700nm | | Weight | <1.1lbs (<0.5kg) Including Battery | | Calibrated Wavelengths | 1490nm, 1550nm, 1625nm and 1650nm | | Size | 6.8”x 4.3”x 1.8” (173mm x 109mm x 45mm) | | Measurement Range | +10dBm to -70dBm | | Data | | | Measurement Resolution | 0.01dB | | Internal Storage | 8GB (>200,000 Curves) | | Measurement Accuracy | ±5% | | Interface | USB Type C, 8GB SD Card | | Tone Frequencies/Sensing | CW, 270Hz, 330Hz, 1kHz and 2kHz | | Environmental | | | Bulkhead | 2.5mm Universal | | Operational Temperature | -10°C to +50°C | | Visual Fault Locator | | | Storage Temperature | -40°C to +70°C | | Wavelength | 650nm ±20nm | | Relative Humidity | 0 to 95% Non-Condensing | | Output Power | <1mW | | | | | Mode of Operation | CW, 1Hz and 2Hz | | | | | Bulkhead | 2.5mm Universal
| | | | | Laser Safety | Class 2 | | | |
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
FAST. • Easy to use one button test function. Start measurements with the push of one button. • Auto test automatically sets test parameters for optimum test results. ACCURATE. • Graphical touchscreen interface is easy to read, even in high ambient light conditions. • 128,000 data points provides high accuracy results. • Measure lengths and fiber defects to quickly locate faults. RELIABLE. • Link Viewer annotates the entire fiber link in an easy to interpret Pass/Fail format. • Cable acceptance reports generate customized reports that include trace signature and fiber events. • Long life battery so you can work longer without recharging - up to 12 hour shift capable.
|
|
|
|
|
|
|
