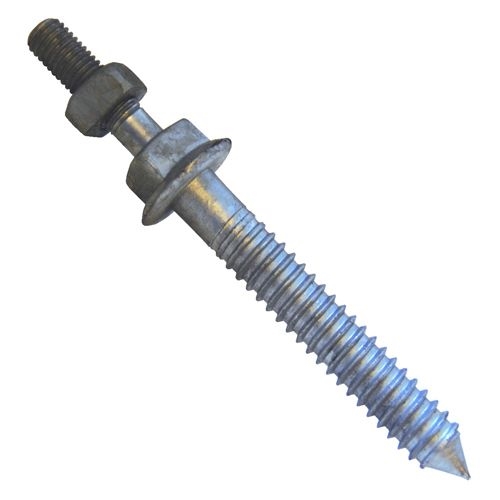

Washer Head Lag Screw 7/8" x 5-1/2" J26315
Washer Head Lag Screw 7/8" x 5-1/2" J26315



Our Price: $14.64


Product Code: H-J26315
Qty:

Description


Washer Head Lag Studs are used for light-duty mounting of cable hangers and cable suspension clamps. Stud end is manufactured with a forged square washer head and a roll threaded stud with assembled square nut. Lag end has sharp rolled gimlet threads and a cone point.

  • Used in attaching suspension clamps to a jointly used pole where the use of a cable suspension bolt would result in improper clearance from another Utility's vertical run.
  • Supplied with a Regular Square Nut.
  • Machine Screw size is 5/8" x 2-1/4" long.
  • Lag Screw length is 5-1/2".
  • Hot dip galvanized to meet ASTM Specification F2329.
