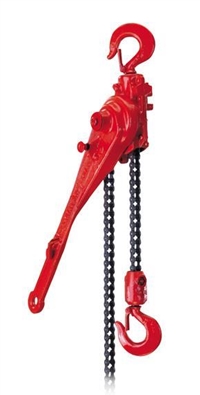

Coffing ATG Series ratchet lever hoists are efficient and durable, featuring malleable iron roller chain. Roller chain, often referred to as bicycle chain, can be spliced to create longer lifts and can handle higher capacities than coil chain. ATG Series hoists are ideal for utility transmission and distribution work.

Load hooks are forged steel with spring-loaded latches. Both top and bottom hooks swivel 360° to allow for unwinding action of rope or stranded cable under tension. For easy hook-up, chain release to freewheel but only under no-load conditions. Controls automatically lock when hoist is pulling a load. Two simple levers. Shift Key for up and down, on top housing, and Release Key in handle recess are easy to switch, even wearing gloves.
20" handle/aluminum housing 5.5' standard lift distance 3-Ton rating 60 lbs. handle pull at rating 20" hook-to-hook minimum

Load hooks are forged steel with spring-loaded latches. Both top and bottom hooks swivel 360° to allow for unwinding action of rope or stranded cable under tension. For easy hook-up, chain release to freewheel but only under no-load conditions. Controls automatically lock when hoist is pulling a load.

20" handle/aluminum housing 5.5' standard lift distance 3-Ton rating 60 lbs. handle pull at rating 20" hook-to-hook minimum

Designed with special features, both 1-ton and 2-ton hoists offer a choice of two handle options for utility maintenance and construction. For rubber-glove work, select hoist with plastisol cap on handle end and for operation by hot-line tools, select hoist with swivel eye on handle end. All models have hot-stick rings on hooks and latches.

Convertible Hot Stick Nylon-Strap 3/4-1 1/2 (H/S), Adapts immediately to varying field needs. Adds 3 ft of lift-distance capability when rigged at the lower rating.

Load hooks are forged steel with spring-loaded latches. Both top and bottom hooks swivel 360° to allow for unwinding action of rope or stranded cable under tension. For easy hook-up, chain release to freewheel but only under no-load conditions.

Load hooks are forged steel with spring-loaded latches. Both top and bottom hooks swivel 360° to allow for unwinding action of rope or stranded cable under tension. For easy hook-up, chain release to freewheel but only under no-load conditions. Controls automatically lock when hoist is pulling a load.

Web-Strap Ratchet Hoist has a large, non-conductive dial (drum knob) allows web slack to be adjusted with ease. The hoist has a 360 handle rotation and a 3/4 ton single line and 1 1/2 ton double line load rating. Tight ratcheting mechanism allows precise tensioning.

Block & Tackle available with standard snap hooks or guarded snap hooks ( with snap hook nose lengthened to extend over the latch or keeper. Hooks fit under insulated and engage pin on cross arm, 25' length. Block & Tackle Klein 1802-30-SR
Weight (lbs.): 2.80 Maximum safe load is 750 lbs. (338 kg). 25 ft rope length.

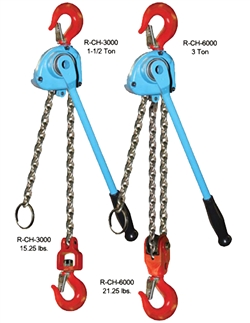

Chain Hoist 1 1/2 Ton

Reliable CH chain Hoist series offer the most power in the smallest, lightest steel hoist body.
Approx Pull: 72 Lbs Handle 17": Head 11": Stand Lift 55 1 1/2". Manufactured to meet.
ASME B30.21

Chain Hoist 3 Ton
Reliable CH chain Hoist series offer the most power in the smallest, lightest steel hoist body.
Approx Pull: 75 Lbs Handle 17". Head 15". Stand Lift: 54". .Manufactured to meet.
ASME B30.21 Compare to Bell "E" Series Chain Hoists

Pulling Eye - Crows Foot 9055

Provides a strong and easy-to-get-at attachment for the pulling-in blocks when installing or removing cables. Pulling-in irons are set into the brick or concrete walls of street vaults opposite all duct entrances. Hot dip galvanized.

Load hooks are forged steel with spring-loaded latches. Both top and bottom hooks swivel 360° to allow for unwinding action of rope or stranded cable under tension. For easy hook-up, chain release to freewheel but only under no-load conditions. Controls automatically lock when hoist is pulling a load.

Pulling Eye 1/2" - 1" Wagner Smith PE-1 6000lbs. PE-1 AUXILIARY PULLING EYE PENGO
30,000 LB. ULTIMATE BREAK STRENGTH
