Anchor, Tough One, 10in, 8,000 ft-lb rating, 2.25in hub,1in threads Hubbell C1025205
2-1/4" SOCKET ANCHOR 10" 8000 FT. LB. FOR 3/4" AND 1" RODS Hubbell C1025205



Our Price: $78.80


Product Code: HUB-C1025205
Qty:

Description


2-1/4" SOCKET ANCHOR 10" 8000 FT. LB. FOR 3/4" AND 1" RODS

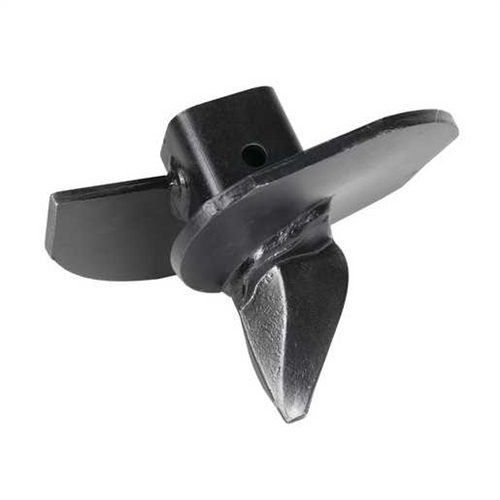

Tough One Anchor Helix, 8,000 Ft Lbs (10,848 N-M), 10" (254 mm) Helix for use with 0.75" (19.1 mm) or 1" (25.4 mm) Rod.

  • Installed with Chance anchor wrench C1021583
  • The anchor's sloped lead point improves penetration and helps soil flow from below the hub to above the anchor.
  • 1" threads to fit 3/4" and 1" diameter Pisa rod
  • Anchors are painted with a black paint
Features

  • General

    ApplicationHelical Anchoring
    CoatingPainted
    Number of Helices1
    Torque Rating8000 ft-lbs
    TypeAnchor Helix
    UPC096359008828

    Dimensions

    Anchor Helix Diameter(s)10 in
    Anchor Hub Size2.250 in
    Rod Diameter
    • 0.750
    • 1.000 in
    Weight14.259 lb
