Link Style Pole Band 30" DIAMETER H-UCB-30-2E 15k

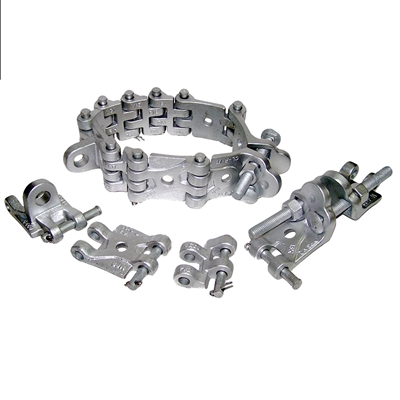

Link Style Pole Band 30" DIAMETER H-UCB-30-2E



Alternative Views:
Our Price: $455.87


: Usually Ships in 24 Hours
Product Code: H-UCB-30-2E
Qty:

Description

Link style Pole Bands provide an ideal product for guying and deadending to steel, wood or concrete poles (non-square) without the need for bolt holes in the pole.
The bands will accommodate pole diameters from a minimum of 8" through 30" diameter pole. The bands are available in two tensile strength ratings: 15,000 pounds and 30,000 pounds for heavy-duty transmission construction applications. They can be supplied with up to four links with connecting eyes that are used as termination points to deadend and guy, such as at 90 degree guyed corner poles.
Link Style Pole Bands:
  • Wood or Concrete Poles ( non-square)
  • Fits Poles 8"-30" Diameter Pole
  • Overall Length 8' x 4"
  • 27 Links included with 2 Eye Links
  • Tensile Strength 15,000lbs
