Lay-In Lock Shear Connector, Bronze, NVENT ERICO
NVENT ERICO Lay-In Lock Shear Connector, Bronze, NVENT ERICO



Our Price: $20.73


Product Code: NVENT-LAY-IN-LOCK-

Choose a size

size*: 		NVENT ELLC1G 2" #6 SOLID #6 STRANDED
NVENT ELLCS1 2.5" #6 SOLID #2 STRANDED

Qty:
Description

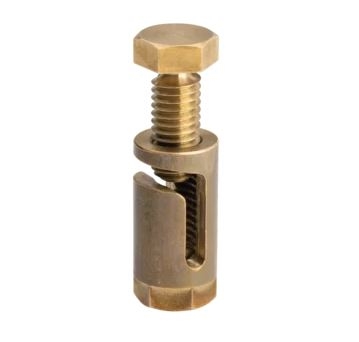

nVent ERICO Lay-In Lock Shear Connector

Connector features an innovative, tamper-proof solution to tap in and create irreversible parallel connections anywhere on new or existing grounding grids.
It allows the installer to lay the conductors into the connector instead of having to feed them through or cut them. It is easy to use and uses standard tools. Also, the bolt can be sheared off to create a permanent connection.
NVENT ELLC1G, NVENT ELLCS1
Features

  • Catalog
  • Number
    		• Material Direct BurialConductor
  • Size
    		• Number of
  • Conductors
    		• TorqueHex WidthLengthDiameter
    ELLC1GBronzeYes#6 Solid, #6
    Stranded    		2150".lb0.65"2"0.75"
    ELLCS1Bronze Yes#6 Solid, #2
    Stranded     		2150".lb0.75"2.5"0.88"
