PLP 43009945 FIBERLIGN® Dielectric Suspension 0.574 - 0.598

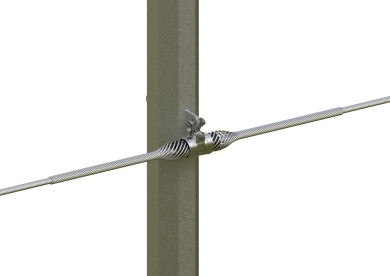

PLP 43009945 FIBERLIGN® Lite Support for ADSS .574" - .598"



Our Price: $139.13
SALE Price: $129.85
You save $9.28!


Product Code: PLP-43009945
Qty:

Description

The FIBERLIGN Dielectric Suspension system uses a combination of Structural Reinforcing Rods (SRR), outer rods, a boltless housing, and resilient cable inserts to reduce compression clamping and bending stresses on the cable and fibers. Negative effects of wind-induced cable motion, such as aeolian vibration, galloping, and wind sway, are also minimized. The double rod layer offers critical protection against tearing of the plastic cable jacket during unbalanced longitudinal loading of the cable while providing substantial holding strength.
Cable Diameter:
  • Minimum: .574" (14.6 mm)
  • Maximum: .598" (15.1 mm)
