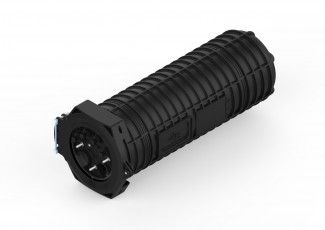

6.5" x 22" COYOTE® Dome Closure for Ribbon, Shallow Slack Basket
The COYOTE® Dome Closures have the versatility and features that make it a perfect choice for fiber-to-the premises networks. Both the 6.5" and 9.5"
Equipped With:
- (1) COYOTE Dome 6.5" x 22" End Plate Organizer, Shallow Slack Basket,
- (1) Dome,
- (1) Gasket,
- (1) Collar,
- (2) Transition Tube Kit Consisting of: (1) 0.250" ID x 25" Long Tube, (2) Long Strength Member Brackets, (2) Short Strength Member Brackets, (2) 1-Hole Grommets 0.40"-0.60", (2) 1-Hole Grommets 0.60"-0.85", (1) 6-Hole Grommet 0.125"-0.250" and Flat Drop Cable,
- (1) 80811338 LITE-GRIP Deep-Pro
VERIZON MMID 10796961 / SSI 11016542 - 4560
COYOTE® 6.5" x 22" Dome Closure Ribbon
| Specifications | Ribbon 8006878 | Splice Capacity (Maximum) – Single Fusion (Standard Profi le, 80810086),
Single Fusion (Deep Profi le, LGSTS72), Mass Fusion (Deep Profi le, LGSTR216) | 144, 216, 648 | | Number of Splice Trays – 80810086, LGSTS72, LGSTR216 | 4, 3, 3 | | Cable Ports1 | 4 | | Cable Diameters | 0.093" – 1.25" (2.4 – 31.8 mm) and Flat Drop 0.093" | | Ground Studs | 4 | | Configuration | Butt | | Application | Direct Bury, Below Grade, Pole/Wall, Aerial | | Ingress Protection | In accordance to Telcordia® GR-771-CORE, Buried, Underground; IP-68 | | Size2 | 8.57" W x 22.60" L (218 x 574 mm) |
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Features and Benefits
• 4-Port segmented end plate design provides independent access to each cable port without disrupting surrounding cables
• Tray design allows the removal from the stack to enable multiple splicers to work simultaneously
• Multiple tray designs support mass fusion splicing, single fusion splicing, or a combination of both
• Flexible grommet sealing technology supports a wide range of flat and round cable profiles
• Quick to assemble, no special tools required
• Flame retardant kits available
• Designed and tested in accordance to Telcordia® GR-771-CORE Buried, Underground, IP-68 Rated Requirements
|
|
|
|
|
|
|
