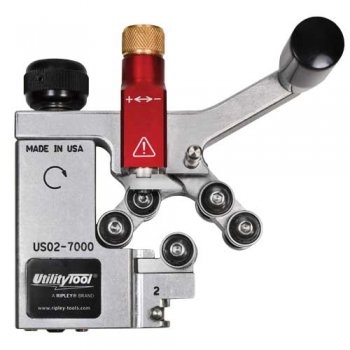

Ripley US02-7000 Adjustable Cable Semi-Con Shaving Tool
Ripley US02-7000 Adjustable Cable Semi-Con Shaving Tool



Our Price: $645.34


Product Code: RIP-US02-7000
Qty:

Description

-Special Order Item-
The US02 quickly and easily removes bonded semi-con from 5 to 35 kV power cables
  • Compact design accurately removes semi-con within 1.18″ (30 mm) of the jacket on mid-span & end stripping applications.
  • Precision blade depth adjusts in increments of 0.004″ (0.1 mm).
  • Adjusts for 0.71″ to 2.36″ (18 mm to 60 mm) cable diameters with semi-con thicknesses up to 0.095″ (2.4 mm).
  • A revolving ergonomic handle & accessible adjustment knobs reduce effort & potential strain from repetitive shaving functions.
  • Stop position squares off the edge to complete the shaving operation without the need for an additional clamp.
  • Factory-set blade is easily replaced.
Features
    • Compact design accurately removes semi-con within 1.18″ (30 mm) of the jacket on mid-span & end stripping applications.
    • Precision blade depth adjusts in increments of 0.004″ (0.1 mm).
    • Adjusts for 0.71″ to 2.36″ (18 mm to 60 mm) cable diameters with semi-con thicknesses up to 0.095″ (2.4 mm).
    • A revolving ergonomic handle & accessible adjustment knobs reduce effort & potential strain from repetitive shaving functions.
    • Stop position squares off the edge to complete the shaving operation without the need for an additional clamp.
    • Factory-set blade is easily replaced.
